NW120A 120 mm 90° Heavy-Duty Industrial Omni Wheel
A compact 120 mm single-wheel option for mounting-interface and multi-directional platform review.
Purchase basis: Single wheel
Engineering inquiry: info@nexusrobot.com
- 100 kg/wheel
- Load capacity
- 120 mm
- Drawing diameter
- 65 mm
- Overall width
- 43 mm
- Wheel frame width

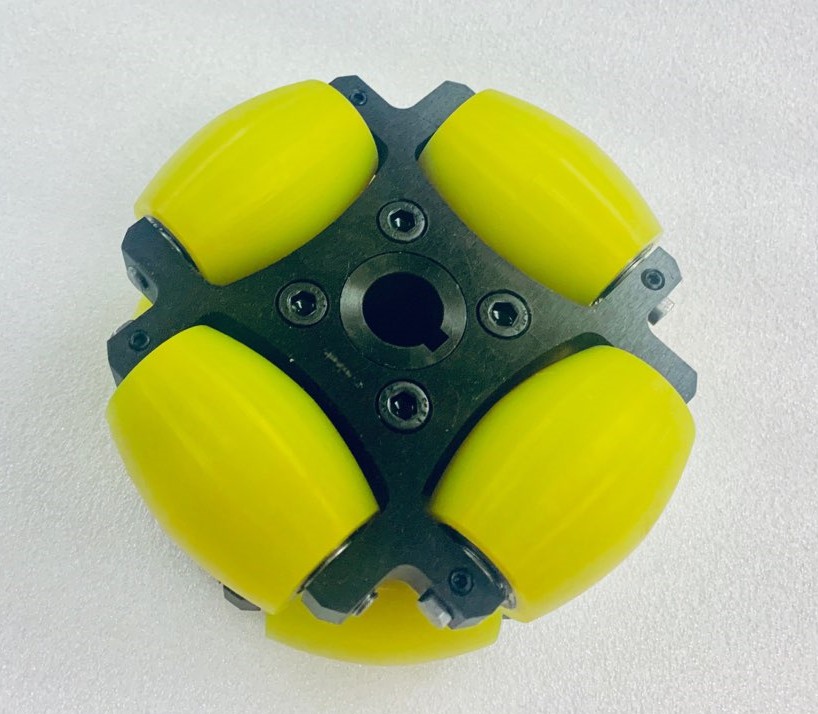

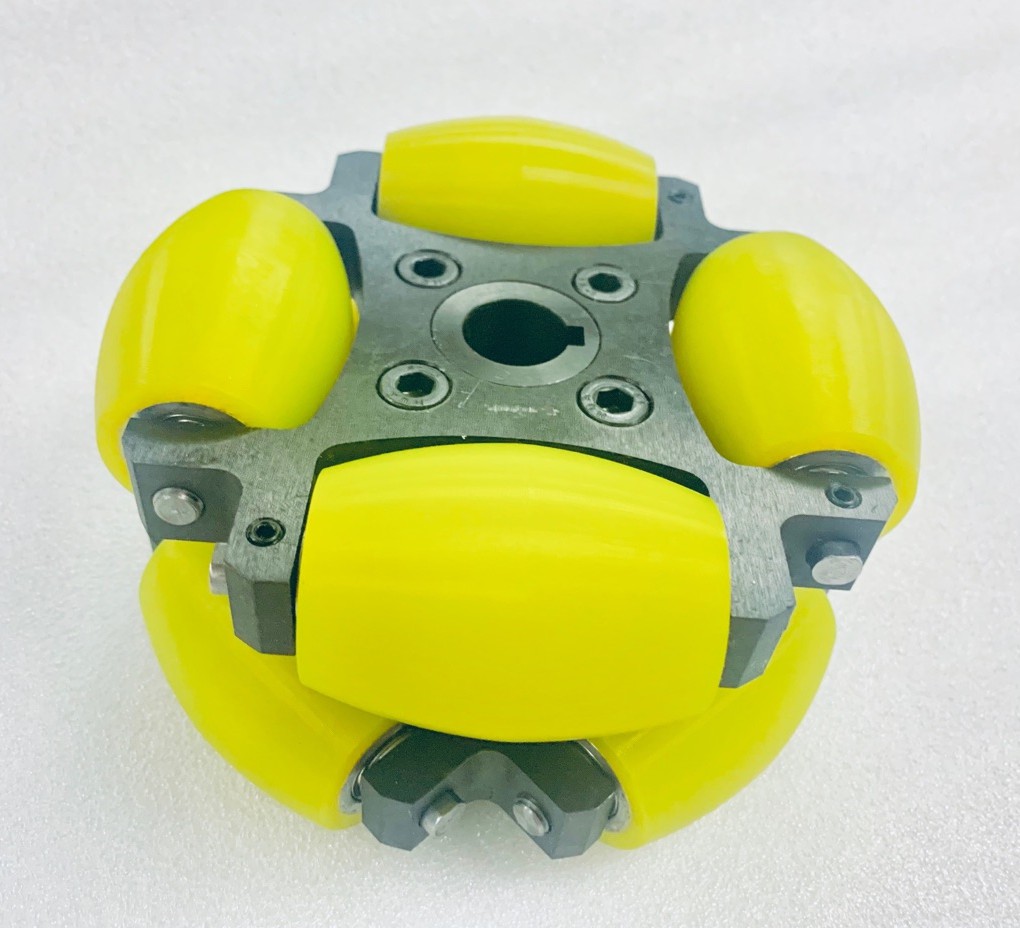

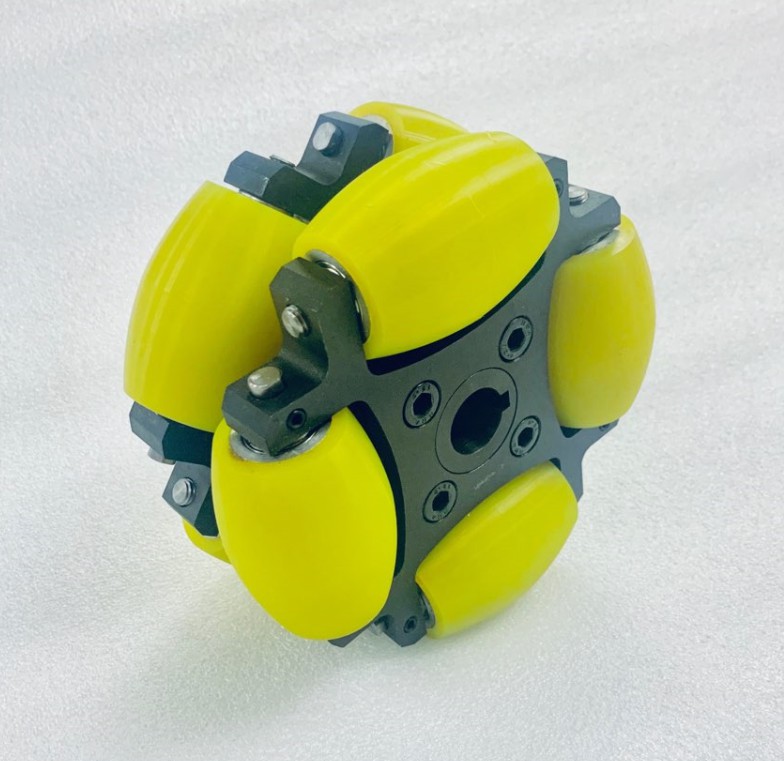

Product gallery
Product overview
A new compact size for the established NW 90° product family
A compact 120 mm wheel combines a 65 mm overall width and a 43 mm wheel frame width with a 100 kg/wheel rated load. The supplied drawing and STEP model support mounting-interface and platform-layout review.
120 mm compact diameter
PDF and STEP supplied
Technical Data
Technical Specifications
NW120A specifications, selection points and engineering support.
Selection noteReview the single-wheel load rating, mounting interface, floor conditions and duty cycle.
90° single-wheel layout
Use single-wheel purchasing and quantity in pieces.
120 mm compact diameter
Review the 120 mm diameter, 65 mm overall width and 43 mm wheel frame width.
PDF and STEP supplied
The supplied PDF and STEP support interface review.
| Model | NW120A |
|---|---|
| Product type | 90° heavy-duty industrial Omni Wheel |
| Purchase basis | Single wheel |
| Drawing diameter | 120.00 mm |
| Overall width | 65.00 mm |
| Wheel frame width | 43.00 mm |

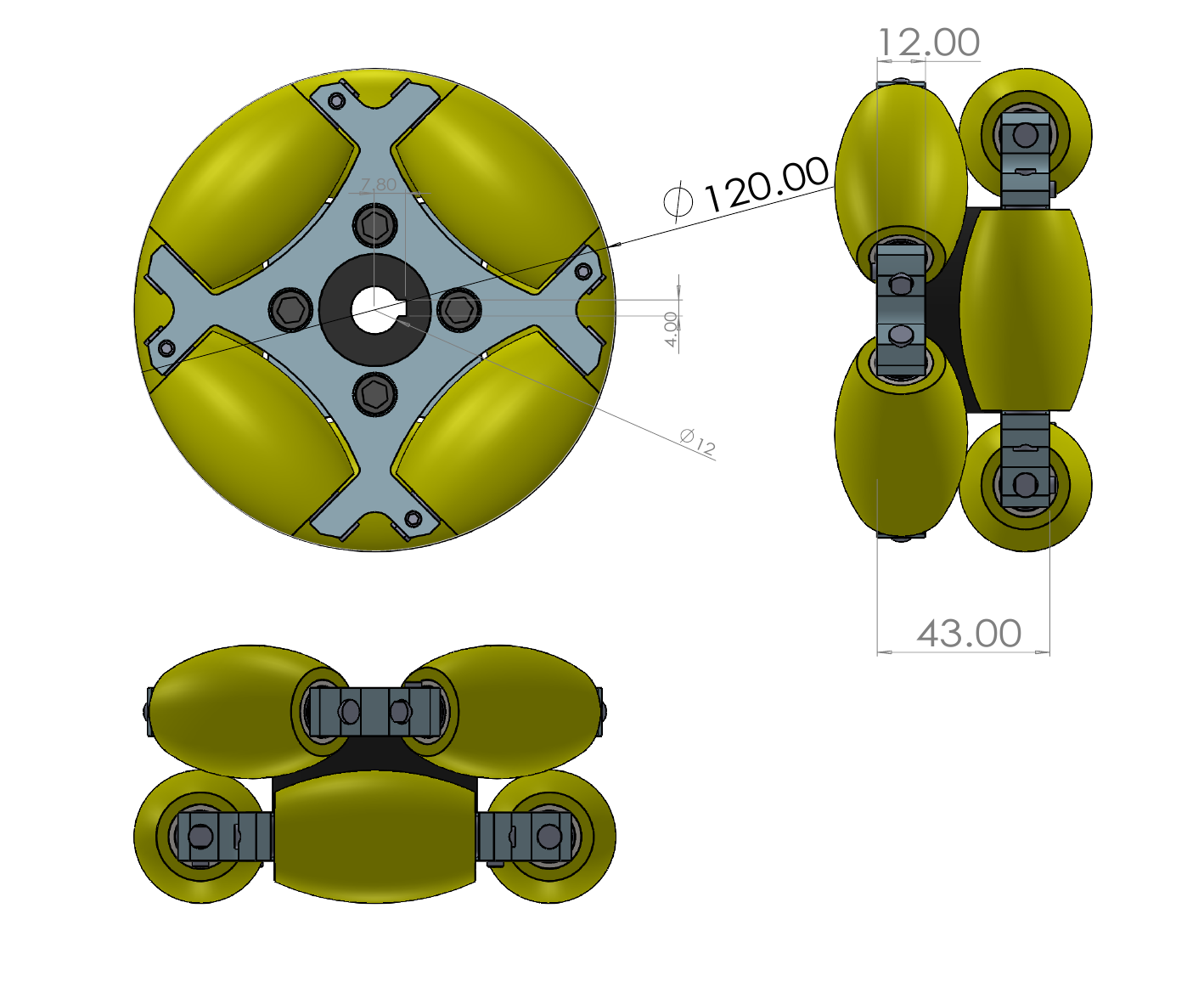

| Central mounting bore | Ø12 mm shown on drawing |
| Keyway feature | 4.00 mm shown on drawing |
| Wheel body material | Steel |
| Roller material | Steel core with polyurethane coating |
| Net weight | 3.5 kg/wheel |
| Load capacity | 100 kg/wheel |
Engineering support
Manufacturing and Project Support
Machining Capacity
37 CNC vertical machining centers, 6 indexing tables, CNC lathes, EDM, wire cutting, grinding, laser cutting, welding and marking.
Engineering Coordination
A team of about 130 people uses ERP, MES, CRM and BPM systems to coordinate engineering review and production. We support common metals and coordinate outsourced surface finishing.
Product Integration Review
Review the supplied drawing and STEP interface, wheel materials and 100 kg/wheel rating.
Engineering RFQ
Request a quote for NW120A
Only your work email is required. Add project details if available.
Application fit
Applications for NW120A
Review the single-wheel load rating, mounting interface, floor conditions and duty cycle.
Compact industrial platforms
Review the 120 mm wheel envelope.
AGV steering layouts
Confirm the complete wheel arrangement.
Transfer equipment
Check the 65 mm overall width and 43 mm wheel frame width.
Engineering prototypes
Use the 100 kg/wheel rating for selection.
Product family
Compare models in this product family
120 mm 90 degree wheel
100 kg/wheelSelected model
127 mm 90 degree wheel
80 kg/wheelView model
152 mm 90 degree wheel
100 kg/wheelView model
203 mm 90 degree wheel
300 kg/wheelView model
254 mm 90 degree wheel
500 kg/wheelView model
