45° architectureWheel Sets · 2 Left + 2 Right
45° wheel sets + 90° single wheels
Industrial Mecanum Wheels for Heavy-Duty Motion Platforms
Nine verified wheel models from 5 to 12 inches, organized by motion architecture and purchase basis for faster engineering review.
- 9
- verified models
- 5
- 45° wheel sets
- 4
- 90° single wheels
90° architectureSingle Wheels
Choose by wheel architecture
Two architectures. Two purchase bases.
Load ratings are intentionally kept separate: complete-set capacity for 45° wheels and per-wheel capacity for 90° wheels.
01

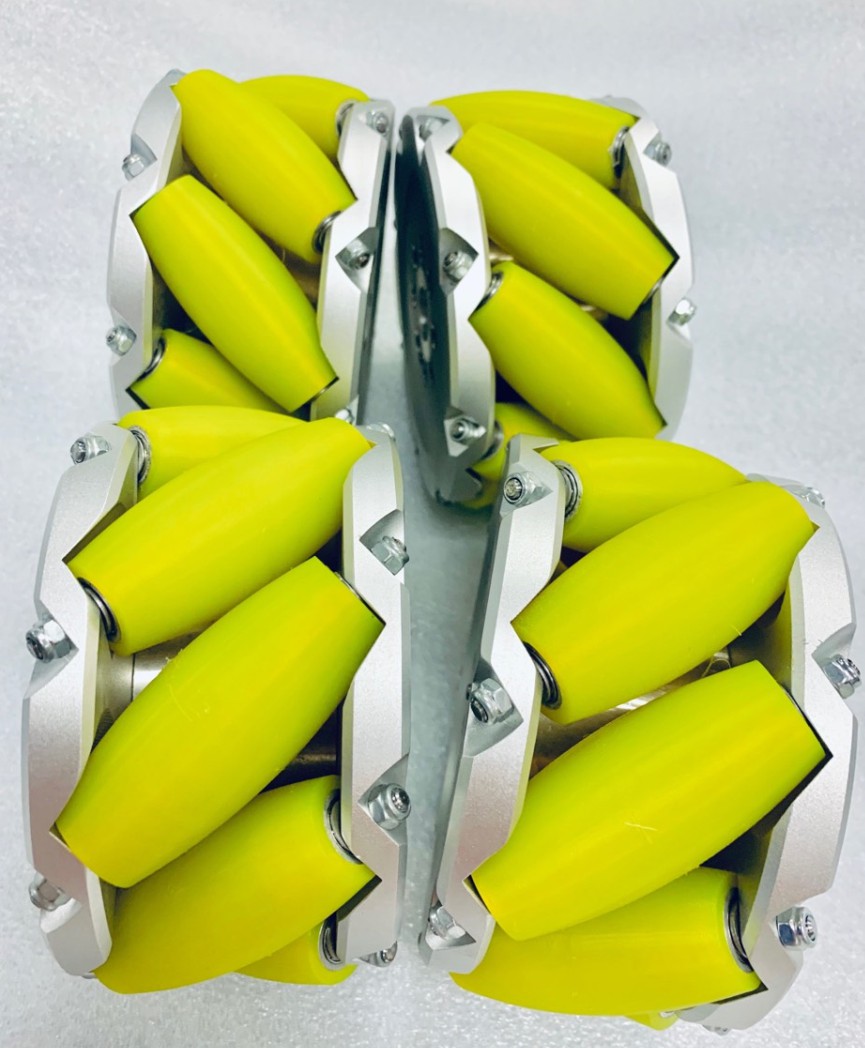

Industrial Mecanum Wheels — 45° Rollers
Complete four-wheel sets
Specified as two left wheels plus two right wheels for driven omnidirectional platforms.
- Purchase basis
- 4-wheel set
- Load unit
- kg/set
- Models
- NM127A to NM305A
02

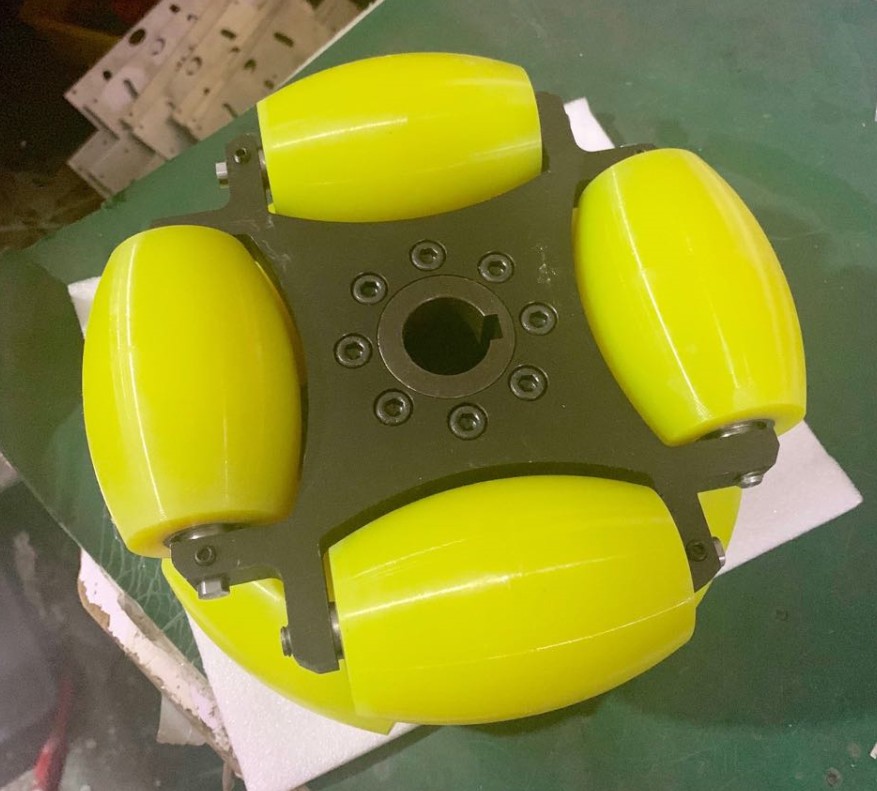

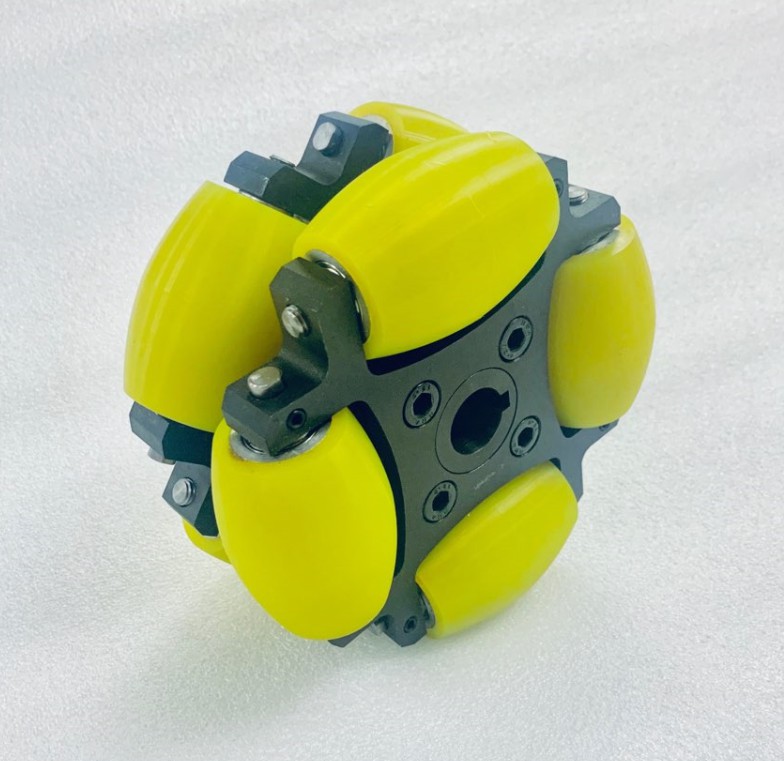

Heavy-Duty Industrial Mecanum Wheels — 90° Rollers
Individual 90° wheels
Specified and quoted as a single wheel for integration into suitable side-rolling or multi-directional layouts.
- Purchase basis
- Single wheel
- Load unit
- kg/pcs
- Models
- NW127 / 14153 to NW254A
Verified product range
Nine industrial wheel models
Filter by architecture without mixing complete-set and per-wheel load ratings.
Selection at a glance
Compare all nine models
Diameter, width, load unit and materials are kept in the same wording used by the verified local product samples.
| Model | Architecture | Size | Width | Rated load | Wheel body | Roller |
|---|
Do not add four single-wheel ratings together as a substitute for a tested set rating. Use each product’s stated purchase basis.
Selection guide
Start with the platform architecture
Use the 45° and 90° families as distinct engineering paths, then confirm the drawing and interface before quotation.
45° wheel-set architecture
Four driven wheels for omnidirectional motion
Choose a complete set when the platform layout requires coordinated left and right 45° wheels.
- Two left wheels plus two right wheels
- Set rating shown in kg/set
- Five sizes from 127 to 304.8 mm
90° single-wheel architecture
Passive side-rolling action at each wheel
Choose an individual 90° wheel for integration into a suitable multi-directional drive or support layout.
- Specified and quoted per wheel
- Load rating shown in kg/pcs
- Confirm bore, keyway and interface drawing
Verified application contexts
Built around industrial motion projects
Application cards describe established project contexts only; they do not claim unverified customer installations.

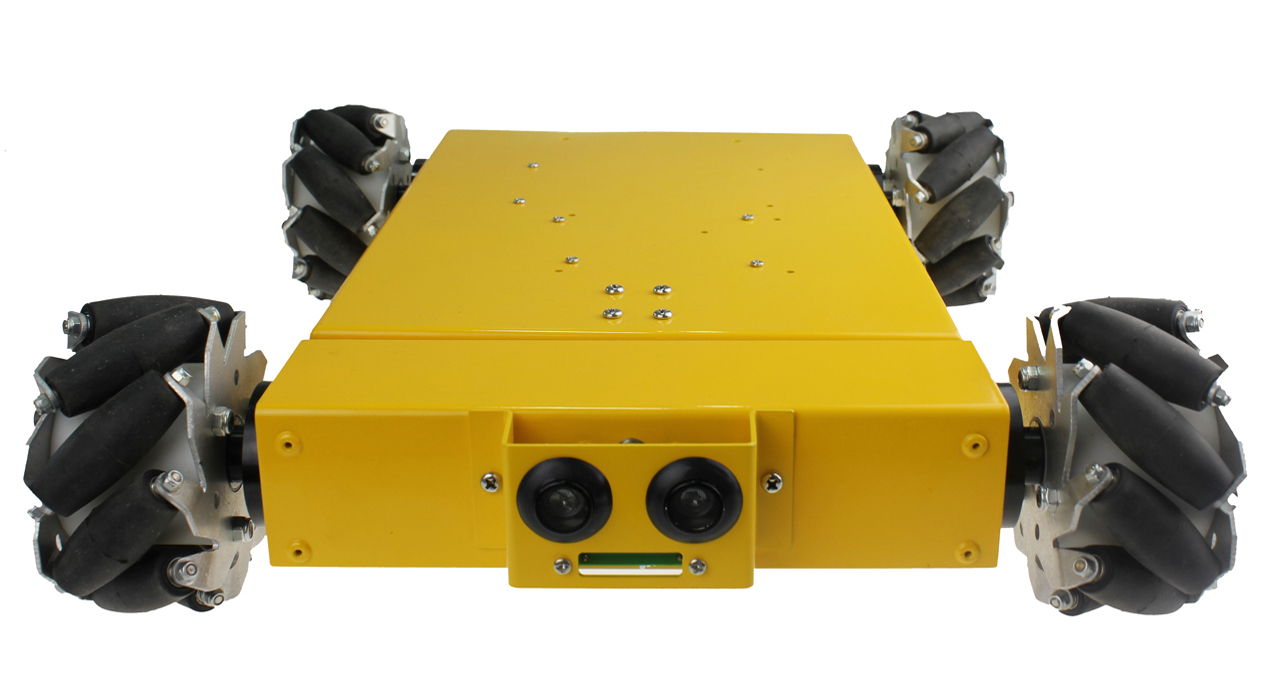

Automated guided vehicles
Wheel selection for platforms requiring lateral movement, rotation and controlled positioning.
Industrial transfer platforms
Heavy-duty material movement across workshop and production environments.
Workshop material handling
Multi-directional platform layouts where turning space and approach direction matter.
Stage equipment
Platform motion projects that require engineering review of load, interface and wheel arrangement.
Custom motion systems
Drawing-led evaluation for industrial systems with project-specific integration requirements.
Manufacturing and project support
Engineering coordination beyond the wheel
Capabilities shown here are limited to information already confirmed for the NM305A project.
Machining capacity
Project support backed by 37 CNC vertical machining centers, 6 indexing tables, CNC lathes, EDM, wire cutting, grinding, laser cutting, welding and marking equipment.
Engineering coordination
A team of about 130 people uses ERP, MES, CRM and BPM workflows to coordinate drawing review, material preparation, machining, inspection and shipment.
Materials and finishing
Support for common metals including aluminum, carbon steel, stainless steel, copper, bronze, zinc alloys and tool steel, with coordinated outsourced surface treatment options.
Engineering RFQ
Discuss your platform with NEXUS Robot
Send the model, estimated quantity and application details directly to our engineering inquiry address.
- State whether your project uses a 45° four-wheel set or a 90° single-wheel architecture.
- Include platform load, wheel arrangement and destination country or region when available.
- Attach drawings in your email or include a secure file link for larger engineering files.
Public engineering contactinfo@nexusrobot.com
Direct engineering inquiry
Request a quote by email
Choose a model from the product section. We will prepare it in the email subject for a faster review.
Selected productIndustrial Mecanum Wheel Project
- Estimated quantity and project stage
- Application, platform load and wheel layout
- Destination, drawing attachment or file link
This link opens your email application. No form data is submitted from this page.
