01
Matched set configuration
The complete set uses two left-hand and two right-hand wheels for an omnidirectional four-wheel platform layout.
Industrial Mecanum Wheels 45° Rollers
NM203A 8 inch (203 mm) Heavy-Duty Industrial Mecanum Wheel Set
A four-wheel set with two left and two right 45° Mecanum wheels, rated at 600 kg per set for AGV, workshop transfer platforms and heavy-duty omnidirectional motion systems.

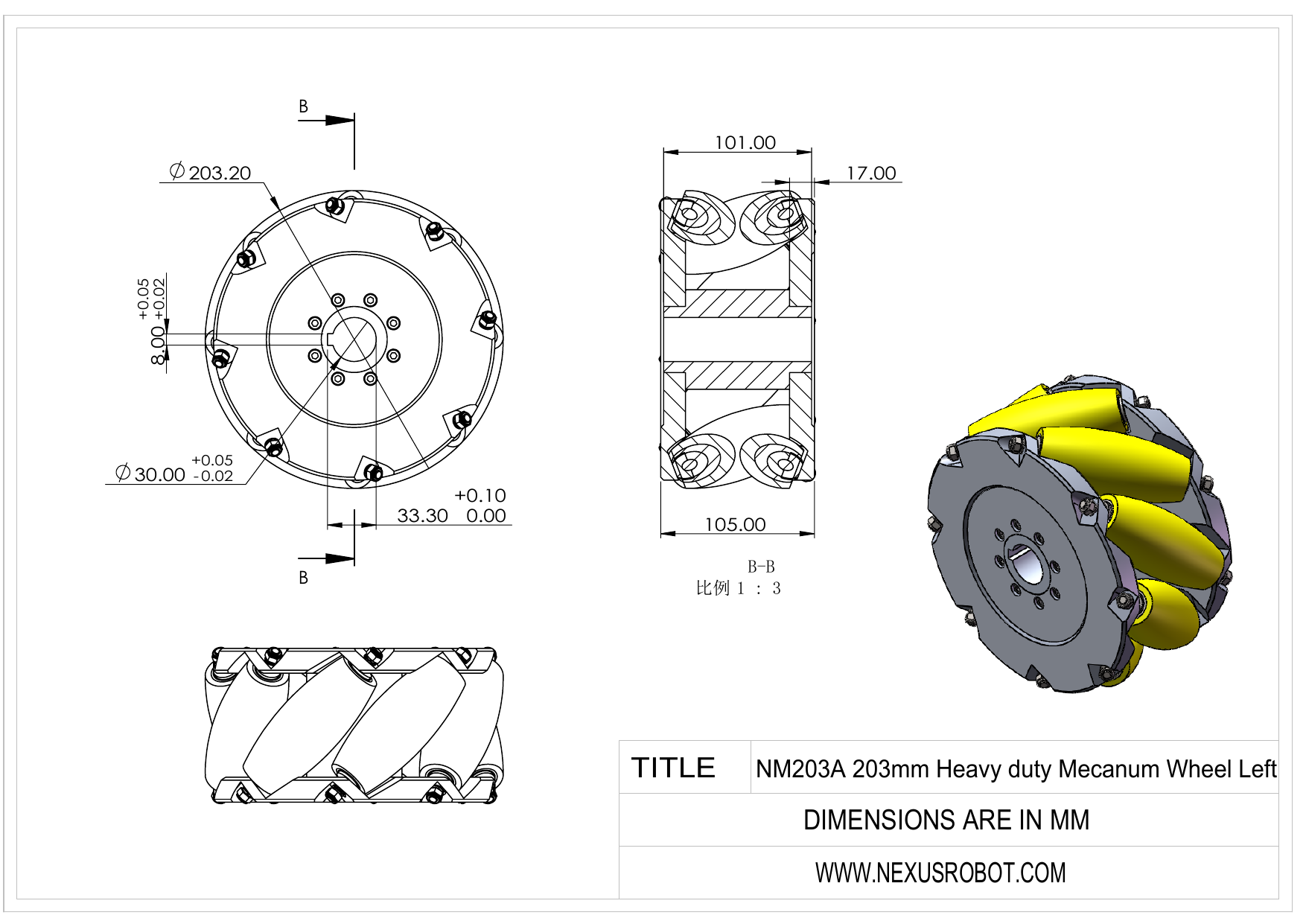

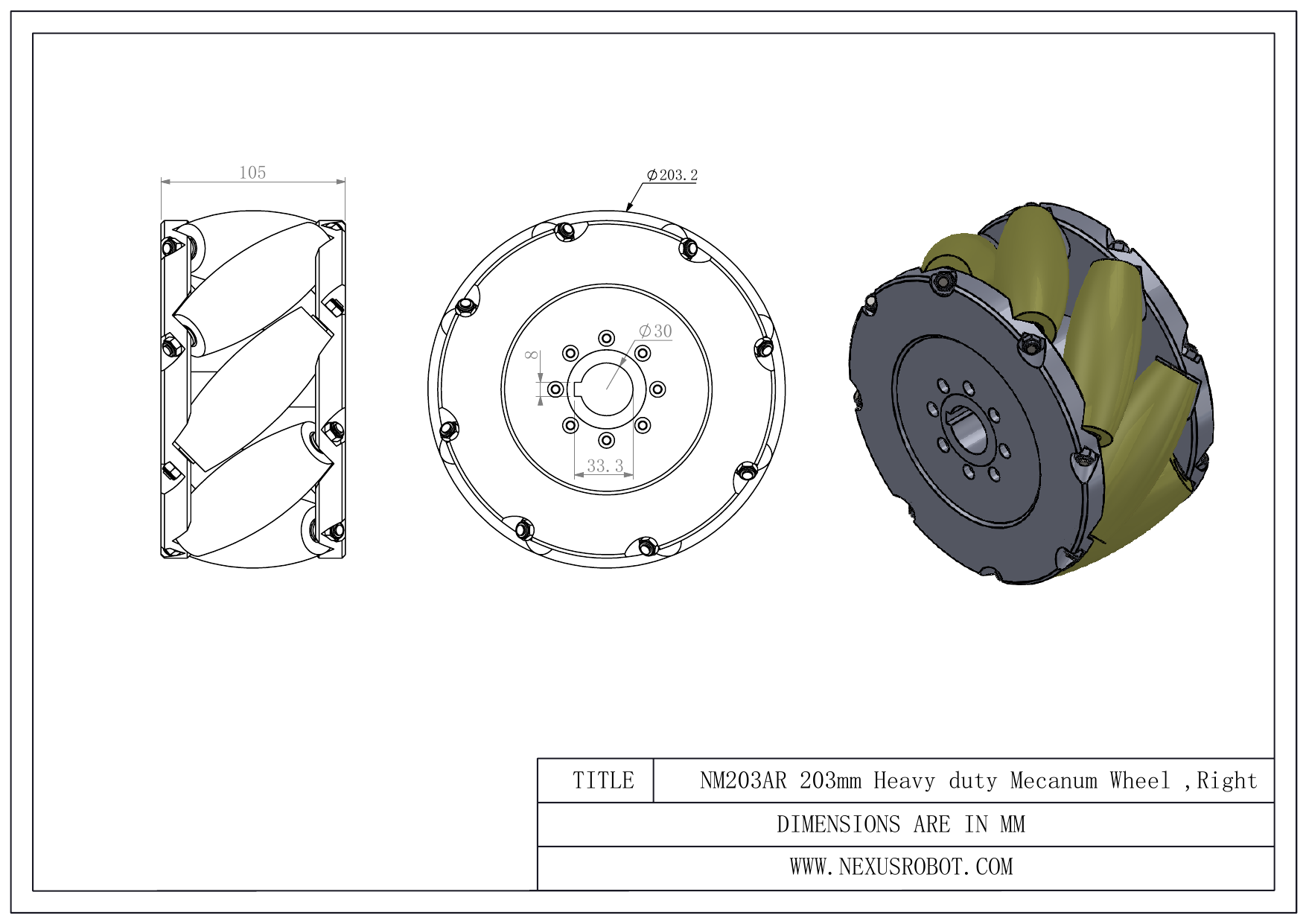

The two PDFs are the verified NM203A left- and right-wheel drawings. The 3D download is the official NM203A-M0.4 left-wheel STEP model.
- 600 kg/set
- Four-wheel-set load capacity
- 203 mm
- 8 inch nominal diameter
- 2 left + 2 right
- Complete 45° wheel set
Engineering inquiry: info@nexusrobot.com
4-wheel set • 45° rollers
Product image 1 of 3
45° four-wheel-set architecture
Specified and quoted as a complete wheel set
The NM203A is presented as two left wheels plus two right wheels. Its 600 kg/set rating must remain a set value throughout selection and quotation.
02
45° roller geometry
Eight polyurethane-coated rollers per wheel support forward, lateral, diagonal and rotational platform movement when the wheels are driven in a suitable layout.
03
Engineering resources
Separate NM203A PDFs cover the left and right wheels. The available STEP resource is specifically the NM203A-M0.4 left-wheel model.
Current formal product data
NM203A technical data
Set values and per-wheel construction details are shown separately so the four-wheel purchase basis stays clear.
Load basis
600 kg per four-wheel set
| Model | NM203A |
|---|---|
| Product Type | 45° Heavy-Duty Industrial Mecanum Wheel Set |
| Series | Industrial Mecanum Wheels — 45° Rollers |
| Set Configuration | 2 left wheels + 2 right wheels |
| Nominal Diameter | 203 mm / 8 inch |
| Overall Width | 105 mm |
| Number of Rollers | 8 per wheel |
| Number of Plates | 2 per wheel |
| Wheel Body | Aluminum alloy |
| Roller Material | Aluminum core with polyurethane coating |
| Net Weight | 8 kg × 4 |
| Load Capacity |
600 kg/set |
Company capability
Manufacturing and Project Support
Machining Capacity
Project support backed by 37 CNC vertical machining centers, 6 indexing tables, CNC lathes, EDM, wire cutting, grinding, laser cutting, welding, and marking equipment.
Engineering Coordination
A team of about 130 people uses ERP, MES, CRM, and BPM workflows to coordinate drawing review, material preparation, machining, inspection, and shipment.
Materials and Finishing
Support for common metals including aluminum, carbon steel, stainless steel, copper, bronze, zinc alloys, and tool steel, with coordinated outsourced surface treatment options.
Low-threshold RFQ
Request a quote for NM203A
Only your work email is required. Add quantity, application notes or a drawing when available.
- Product model, series and source page are recorded automatically with this inquiry.
- Use sets when entering estimated quantity for NM-series 45° wheel sets.
- For larger CAD files, include a drawing download link in the project details or link field.
Prefer email? info@nexusrobot.com
Industrial Wheel RFQ
Request a quote for NM203A
Only your work email is required. Add quantity, application details, drawings, or a secure file link when available.
Public engineering contact: info@nexusrobot.com
Application fit
Where NM203A is typically evaluated
Use total platform load, wheel layout, duty cycle, floor conditions and drive requirements to confirm final selection.
-
AGV
Heavy-duty automated guided vehicles and mobile equipment
-
Workshop
Industrial transfer and material-handling platforms
-
Equipment
Machinery requiring lateral, diagonal and rotational movement
-
Stage
Stage-show equipment and movable production platforms
Industrial Mecanum Wheels 45° Rollers
Compare the five wheel-set sizes
All load values below are shown per complete set. Select a model to carry its name into the RFQ form.
5 inch / 127 mm
NM127A
200 kg/set
6 inch / 152 mm
NM152A
300 kg/set
Current model
8 inch / 203 mm
NM203A
600 kg/set
10 inch / 254 mm
NM254A
1,500 kg/set
12 inch / 305 mm
NM305A
3,000 kg/set
