Product Description

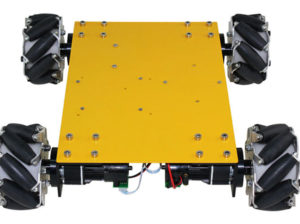

4WD 100mm Mecanum Wheel Learning Arduino kit 10009

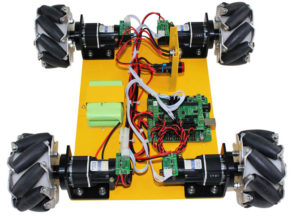

This is a four wheel drive mobile learning arduino kit designed for hobbyists and students. It includes four coreless 12V DC motors with encoders, arduino microcontroller and I/O expansion on board, it is programmable with the open soure Arduino language. Its chassis is made of Aluminum-alloy and it has pre-drilled holes for microcontroller.
This Mecanum wheel mobile Arduino robotics car can be made to move in any direction and turn by varying the direction and speed of each wheel. Moving all four wheels in the same direction causes forward/backward movement, running left/right sides in opposite directions causes rotation, and running front and rear in opposite directions causes sideways movement. The platform rear wheels are mounted in a particular way, so that the suspension structure ensures that all four wheels can adhere to the ground, even when the ground is uneven.
Features:
-
4 wheel drive
-
Mecanum Wheels
-
Aluminum alloy body
-
Easy to assemble
-

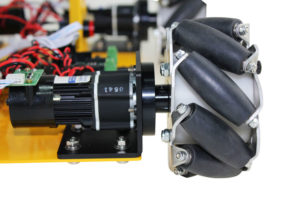

DC motors with encoders
-
Suspension structure ensure roadgripping of each wheel
-

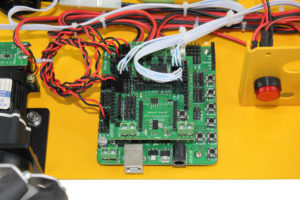

Includes Arduino Microcontroller and I/O expansion board
-
Capable of moving forward, backward, sideway , rotation.
-
Programmable with C, C++
Specification:
-
Length: 300mm
-
Width: 215mm
-
Height: 100mm
-
Net Weight: 3.8kg
-
Wheel Diameter: 100mm
-
Wheel Thickness: 51mm
-
Wheel Material: Aluminum with Rubber Rollers
-
Chassis Material: Aluminum
-
Color: Silver
-
Speed: 0.6 m/s
-
Climbing Capacity: 30 degree incline
-
Controller: Arduino ATMega328P, IO Expansion Board
-
Mini-ITX Compatible: No
What’s in the Box:
-
4 x 100mm Aluminum Mecanum wheels
-
4 x 12V DC coreless motors
-
Arduino 328 controller
-
Arduino IO expansion V1.1
-
12V Ni-Mh battery
-
12V charge
Download PDF Files:
4WD 100mm Mecanum Wheel Learning kit 10009
