48mm Stainless Steel Mecanum wheels Left 14209L

Product Description

48mm Stainless Steel Mecanum wheels Left 14209L

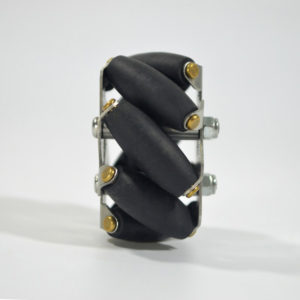

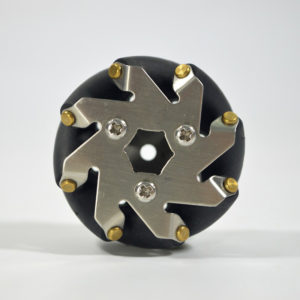

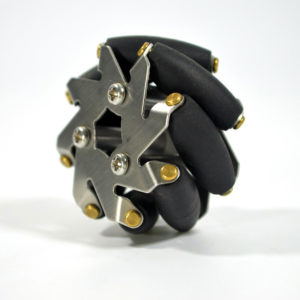

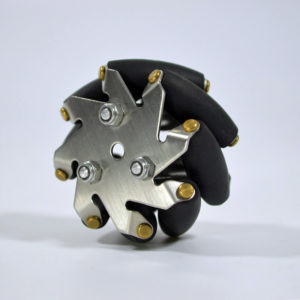

The 48mm steel mecanum wheel is the smallest in our mecanum wheel range. This product is sold individually as one left wheel. It has the compatible brass hub, You can use the hub to connect your DC motor,3MM/4MM/5MM diameter for the brass hub for your choice, each wheel is comprised of 8 TPR rollers, these axles and rollers are sandwiched between two steel plates, use these mecanum wheels on your robot, it can move forward/backward and from side to side. Using rollers set on 45 degree rotational axis parallel to the main rotational axis of the wheel, all you need to do is to add your drive motors, controller boards and batteries.

Specifications:
Diameter: 48mm
Width: 25.5mm
Number of rollers: 8
Number of plates: 2
Body Material: Stainless Steel
Roller Material: TPR
Length of roller: 25.5mm
Net weight: 56g
Load Capacity: 1kg

Compatible Hubs:

3MM 18076

https://www.nexusrobot.com/product/3mm-brass-coupling-for-48mm-steel-mecanum-wheel-18076.html
4MM 18077

https://www.nexusrobot.com/product/4mm-brass-coupling-for-48mm-steel-mecanum-wheel-18077.html
5MM 18078

https://www.nexusrobot.com/product/5mm-brass-coupling-for-48mm-steel-mecanum-wheel-18078.html
