Product Description

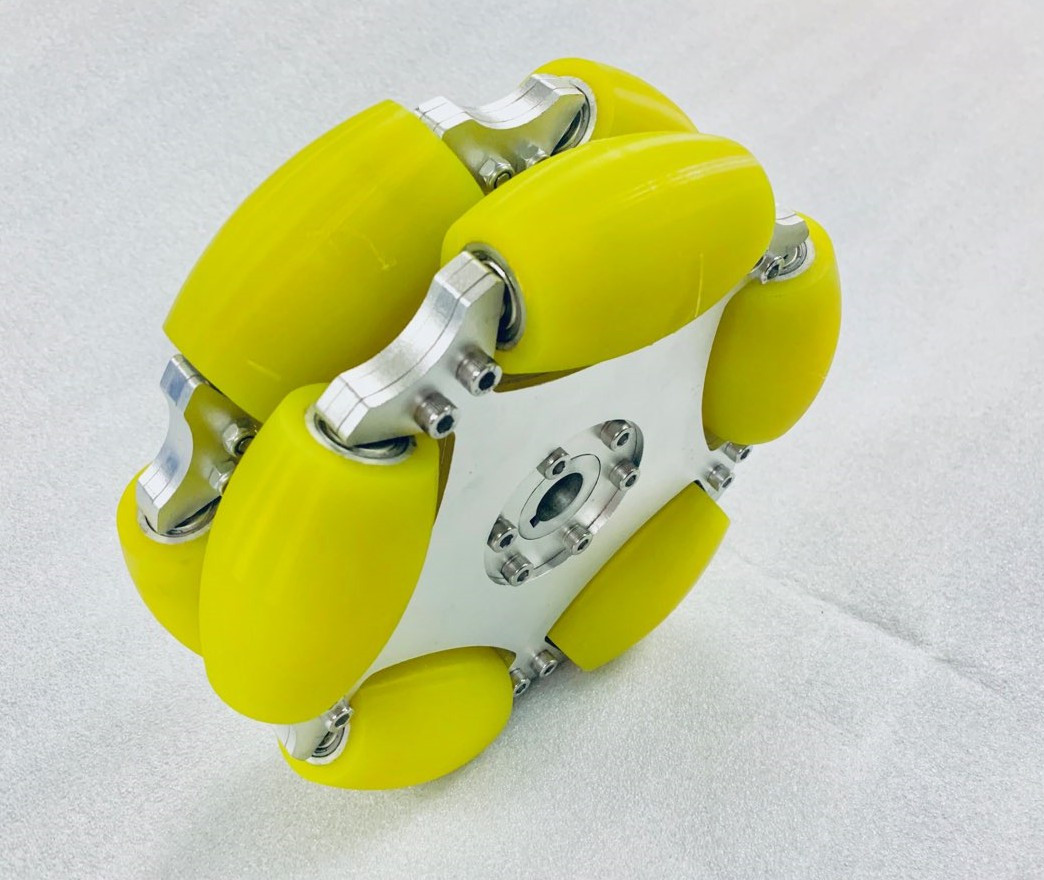

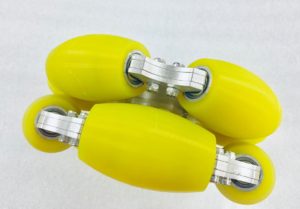

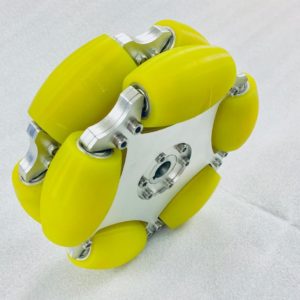

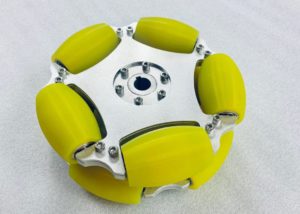

203mm Aluminum Omni wheel with PU roller(80kg Load capacity）14194
The (8 inch)203mm omnidirectional wheel,provides a maximum load capacity of 80kg.Two rolling bearings are embedded in each driven small wheel, which is composed of a polyurethane wheel and an aluminum wheel.The accessories are machined with full CNC high precision technology.It has a good performance in terms of stability, quietness, reliability and wear resistance, and can adapt to various environments such as indoors and outdoors.
Specification:
Diameter: 8 inches (203mm)
Inner hole diameter: 17mm
Axial width: 87mm
Number of rollers: 10pcs
Body material: aluminum alloy
Roller material: polyurethane
Net weight: 3KG
Load capacity: 80KG/piece
Download PDF Files:
Download STP Files：
