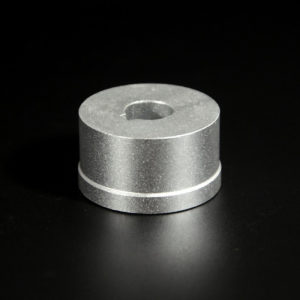

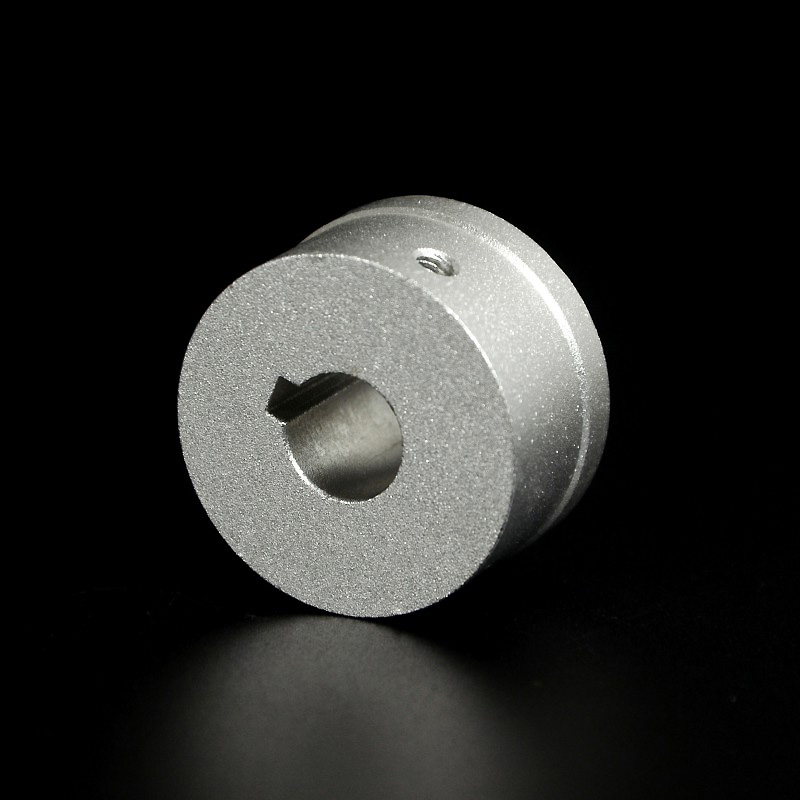

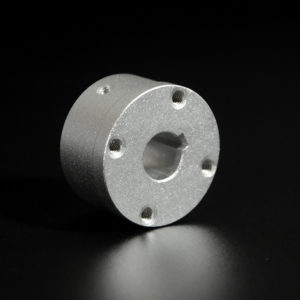

12mm Key hub for 127mm Aluminum single Omni wheel 18041
NEXUS 18041 is a keyed aluminum hub with a nominal 12 mm bore, listed for the NEXUS 14210 127 mm single-row omni wheel. It is sold individually. Select the hub for the actual shaft form and keyway, and check the wheel-side mounting interface against the relevant drawings before ordering.
Wheel compatibility
The matching wheel listed for this hub is NEXUS 14210 127 mm single-row omni wheel. Do not assume compatibility with every 127 mm omni wheel: wheel diameter alone does not define the hub connection.
Installation and selection checks
- Match the nominal bore to the shaft and check the shaft profile and keyway.
- Compare the wheel-side mounting pattern and assembly clearance with the drawings.
- Confirm the required key, fixing hardware and any assembly procedure in the quotation or installation instructions.
Selection questions
Is this a universal hub for all 127 mm wheels?
No. The listed wheel is model 14210. Check other wheel interfaces separately rather than selecting by diameter alone.
Is the wheel included?
18041 is the hub component sold individually; the wheel is a separate product.
Are a key, screws or adhesive included?
Confirm the required accessories and assembly method in the quotation. Do not infer the package contents or a required adhesive from the drawing alone.
It is compatible with our 127mm Aluminum single Omni wheel 14210
Key Features:
• Material: Aluminum-alloy
• Outside diameter: 36mm
• Bore length: 20mm
• Inside diameter: 12mm
• Net weight: 47g
• Sold individually
Download PDF Files:
18041 – 12 mm key hub drawing (PDF)
